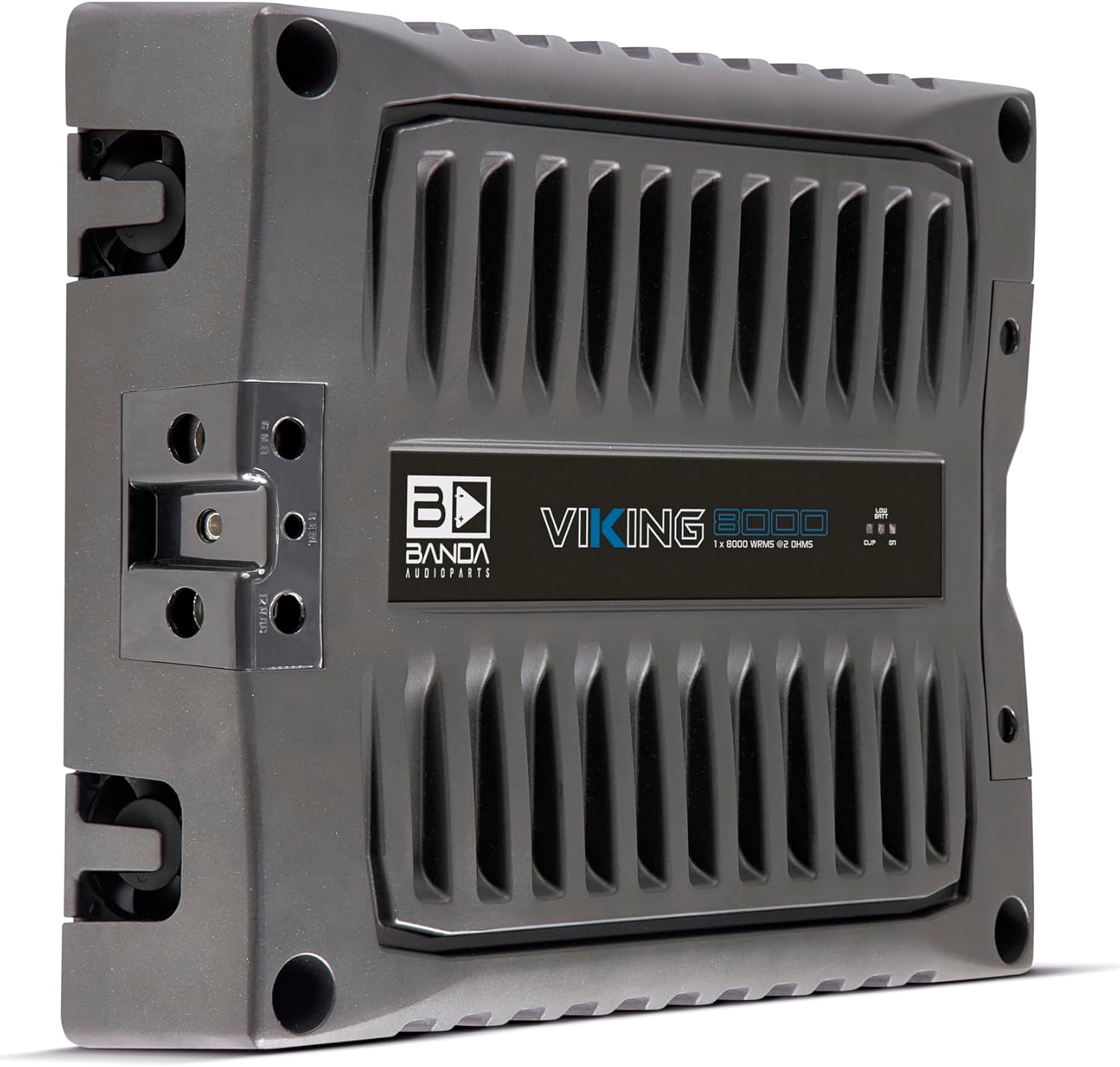

Banda VIK8000.2BK Car Amplifier Audio Speaker 2-Ohms Full Range New Viking 8000 Watts Rms LED Indicator Sound Specialization Aluminum Chassis - Black

BANDA VIKING8002 One Channel 8000 Watts Max @ 2 Ohm Car Audio Amplifier w/Bass Boost High Pass Filter and Low Pass Filter. Use 1/0AWG power cables for both GND and +12Vdc. Do not use an impedance load lower than the amplifier specification. This can damage the equipment. Use wire solder for tinning the cable end for better electrical contact. Loose electrical connections can cause malfunction, heating and even fire. The GND connection must be as short as possible, using an adequate wire terminal firmly connected to a clean, paint-free spot at the car chassis. If more than one amplifier is used, provide adequate individual wiring for each one. If using a power supply to power the amplifier, it must be capable of supplying between 12.6 – 14.4Vdc with at least the amplifier maximum current value and maximum output variation (Vripple) of 10%.

• GENERAL || Brand : BANDA || Model Number : VIK8000.2BK | VIKING 8000 || UPC : 7898953356557 || TECHNICAL SPECIFICATIONS || Maximum Power at 12.6V @ 2 Ohm : 8000 Watts RMS || Maximum Power at 12.6V @ 4 Ohms : 5100 Watts RMS || Maximum Power at 14.4V @ 2 Ohm : 9000 Watts RMS || Maximum Power at 14.4V @ 4 Ohms : 6800 Watts RMS || Weight (Kg) : 6.3 | 13.9 lbs || Height (cm) : 7.3 | 2.8 (in) || Width (cm) : 25.6 | 10 (in) || Depth (cm) : 31.7 | 12.5 (in) ||
• TECHNICAL SPECIFICATIONS || Operating Class: Class D || Efficiency @ 4 Ohms : 88% || Efficiency @ 2 Ohm : 79% || Input Voltage : 9 - 15V || Input Impedance : 100K Ohms || Total Harmonic Distortion + Noise : ~3% || Input Sensitivity : 200mV to 8V || Signal-to-Noise Ratio : 80dB || Frequency Response: 16 to 16kHz (-3dB) || High-Pass Filter (Subsonic) : 16 - 120Hz @ 12dB/octave Linkwitz-Riley || Low-Pass Crossover : 50 - 16kHz @ 12dB/octave Linkwitz-Riley ||
• TECHNICAL SPECIFICATIONS || Variable Bass Boost : 30 - 80Hz with up to 12dB boost || Recommended Fuse : 2 x 225A || Standby Current Draw : ~3A || Maximum Current Draw (Musical Signal) : 400A || Sinusoidal Current : 850A || Minimum Recommended Power Cable : 70mm / 0 AWG || Minimum Recommended Output Cable : 2 x 6mm / 2 x 3 AWG || Gain Control || Differential Input Signal || Forced Ventilation with Micro Fans ||
• The VIKING line is tailored for those seeking potent and powerful sound. In this line, you will find models that have garnered recognition in top-tier international competitions. || The Viking 8000 delivers an impressive 8000Wrms in a single channel at 2 Ohms, making it a preferred choice for large-scale projects due to its high-performance capabilities. It features a wide frequency response ranging from 16Hz to 16kHz, making it adaptable for driving various types of speakers. ||
• Crafted with a 100% aluminum chassis, the Viking 8000 offers superior heat dissipation, resulting in lower battery consumption and exceptional performance.
